CAN to Serial Converter Advanced
The CAN to Serial Converter Advanced offers a quick and easy way to connect to CAN networks & devices and translate the data to Serial communication. Shop now!
Need bulk pricing or technical details? Contact us
KEY FEATURES
- CAN⇌SERIAL
- Plug & Play
- CAN 2.0A & 2.0B
Description

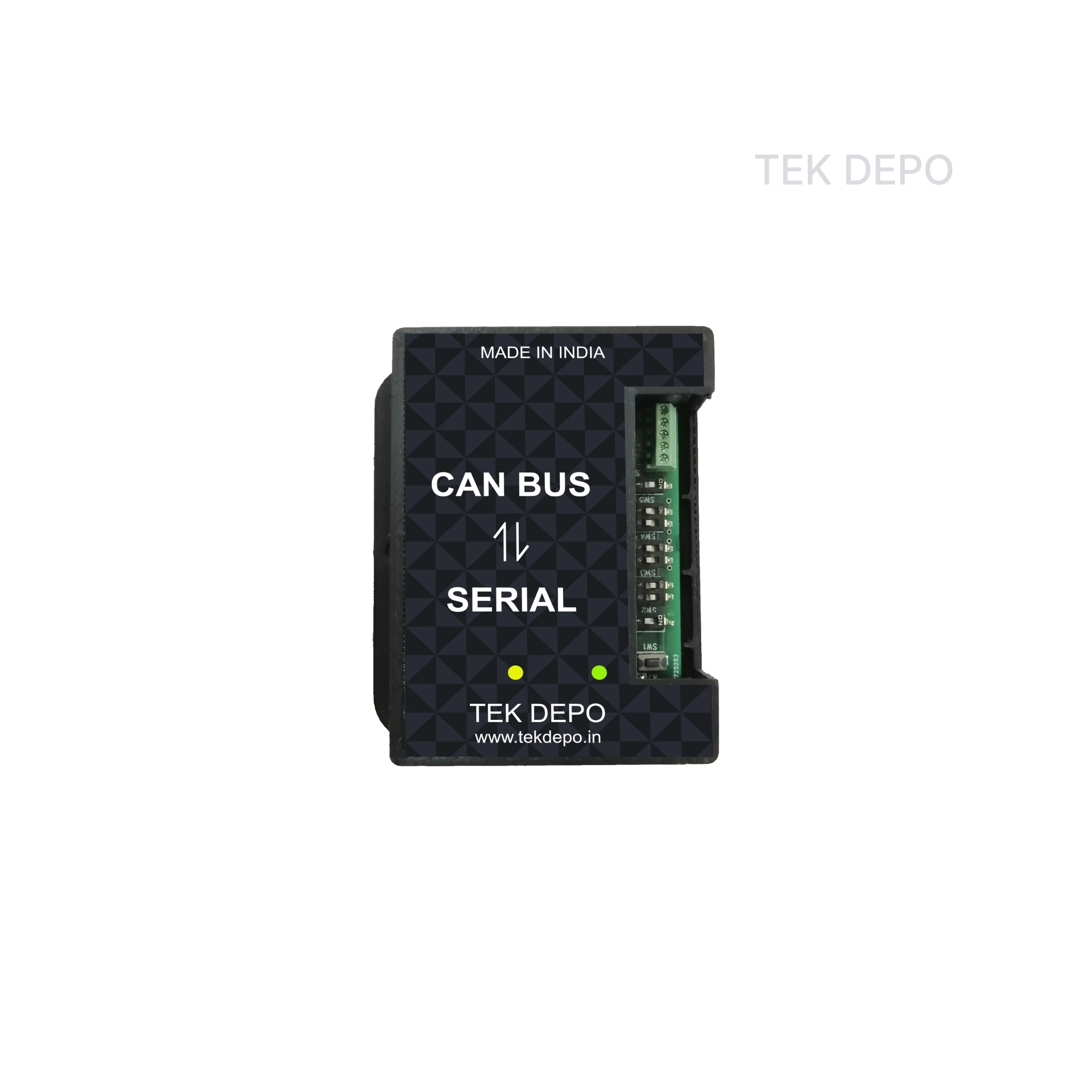

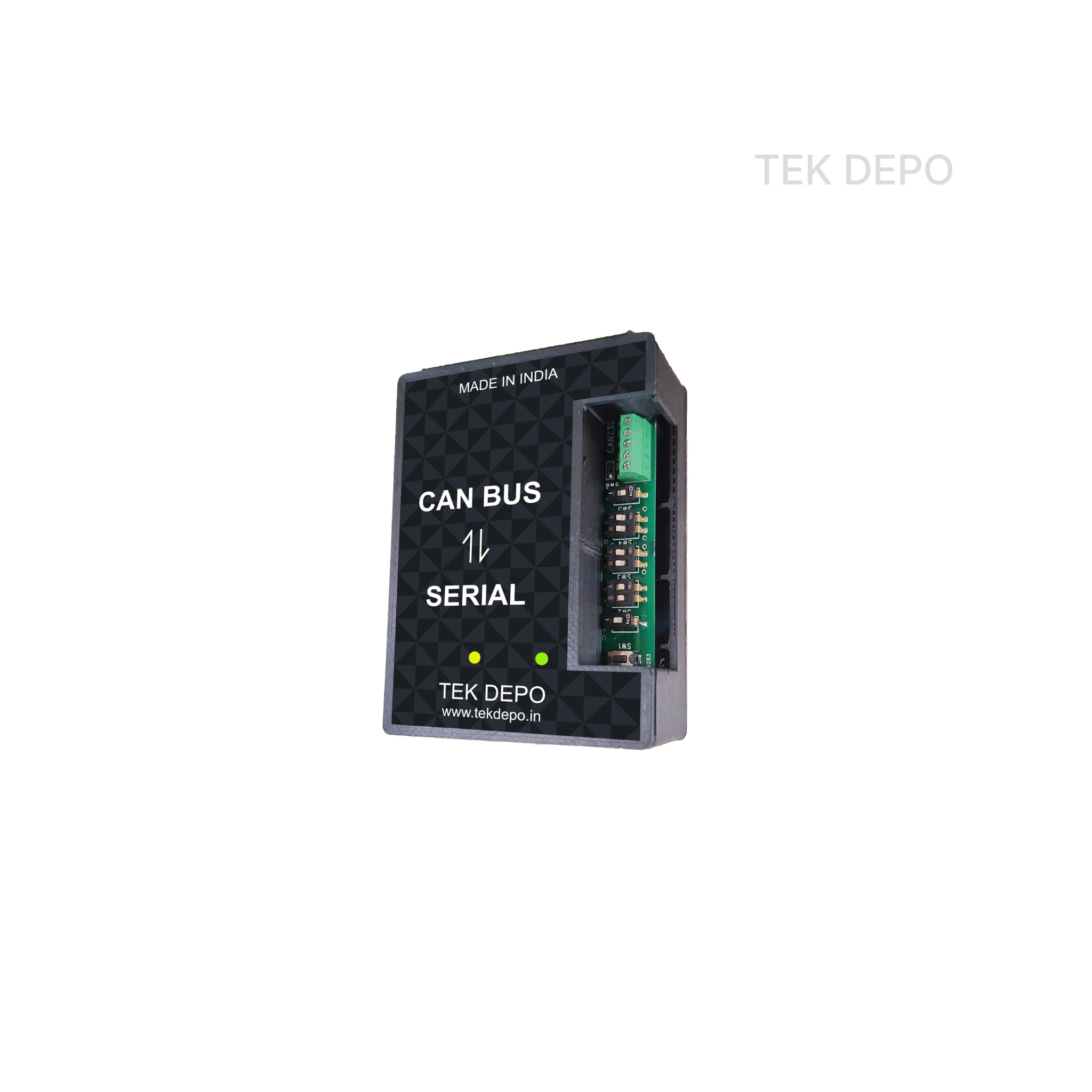

The CAN to Serial Converter Advanced offers a quick and easy way to connect between CAN-Serial network and devices. Its compact, durable design makes it ideal for both indoor and outdoor applications. It comes with support for both RS232 and RS485 serial devices and networks. The intuitive GUI helps the user to configure, monitor and generate messages from the CAN to USB Analyzer. The GUI is supported on Windows 7 and above.
Specification
Technical Specifications
- Power Supply: 10 to 30V DC.

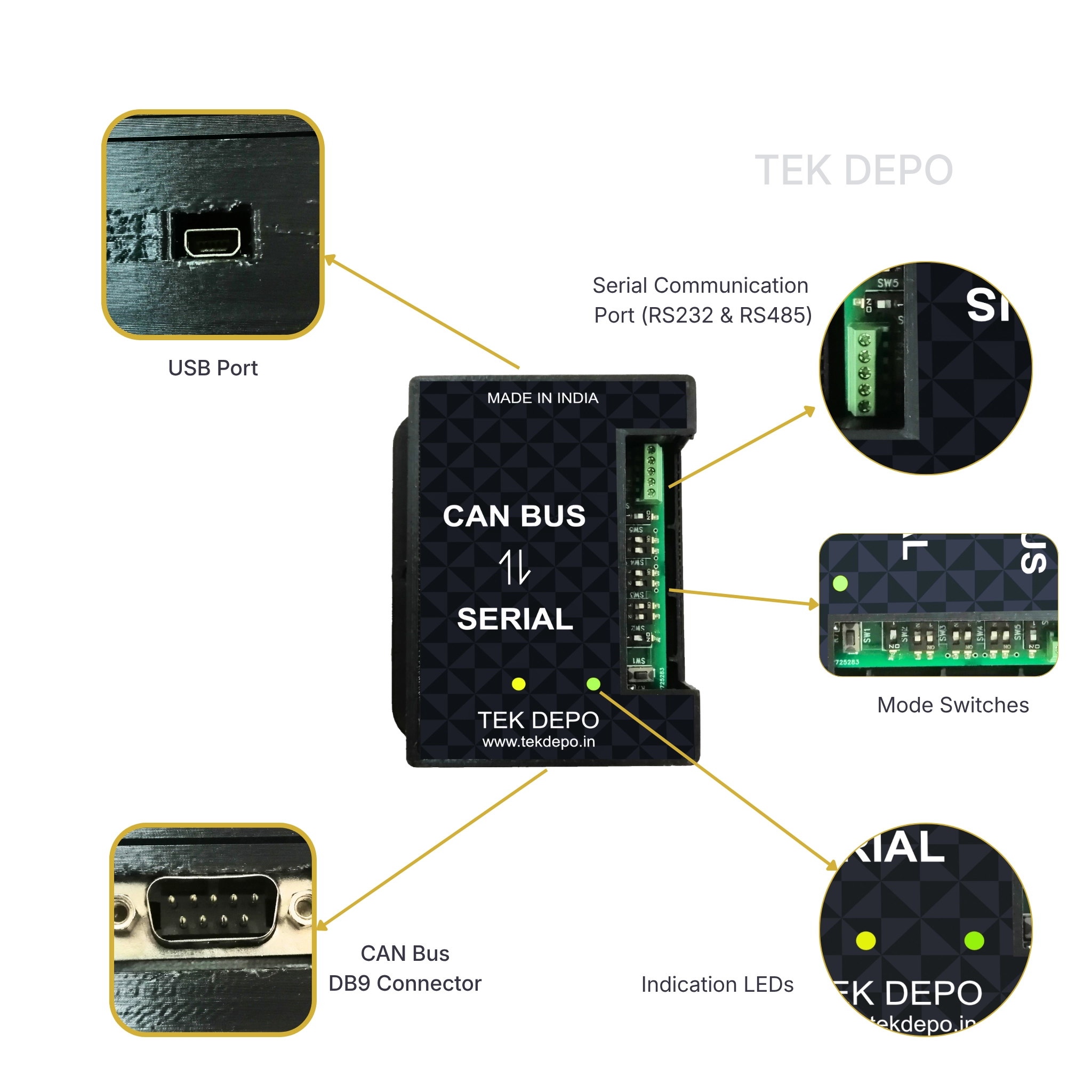

- UART Communication: RS232/RS485 UART connection via Terminal Connector, 5-pin.
- CAN Communication: CAN bus connection via DB9 Connector, 9-pin.
- Baud Rate - CAN Bus: Supports up to 1 MBPS.
- Baud Rate - UART: Support up to 11520 BPS.
- Operating Condition: Operating temperature range from -40 to 85 °C.
- Communication Mode: Gateway & Bidirectional
- CAN Bus Version Support: Compliant with CAN Specifications 2.0A and 2.0B.
Key Features
- Easy and quick connection to CAN networks and CAN devices.
- Dedicated switch for mode, USB, Serial, and CAN Termination control.
- Small size and compact plastic casing.
- LEDs to indicate CAN & UART traffic.
- Configuration tool for user settings – Device Behavioral Mode, CAN Baud rate, CAN filters, UART Baud rate, etc.
Typical Applications
- CAN Network Analysis & Troubleshooting.
- Battery Management System.
- Vehicle Network Analysis & Troubleshooting.
- CAN 2.0A and CAN 2.0B Machines Monitoring.
Shipping & Delivery
- Orders are usually processed within 1–2 business days.
- Standard delivery time is 5–7 business days, depending on your location.
- Tracking details will be shared once your order is shipped.
- For detailed shipping terms, please refer to our Shipping Policy.
Frequently Asked Questions
Quick answers to common questions about our products
What is the CAN to Serial Converter Advanced?
The CAN to Serial Converter is a compact device that connects CAN bus networks to serial interfaces(RS232/485), enabling smooth data transmission between automotive or industrial control systems and PCs.
What protocols are supported by the CAN to Serial Converter Advanced?
It supports both CAN 2.0A and CAN 2.0B communication standards on CAN and RS232 or RS485 on serial, ensuring broad compatibility with modern vehicle and machine communication networks.
What are the main features of CAN to Serial converter Advanced?
Key features include pass through & bidirectional communication mode, LED indicators for CAN and Serial traffic, compact enclosure, and user-configurable baud rate and filters using a GUI tool. The converter operates between 10V to 30V DC and supports up to 1 Mbps CAN baud rate and 115200 bps UART baud rate, ideal for real-time communication.
Who should use the CAN to Serial Converter Advanced?
The device is ideal for automotive engineers, embedded developers, industrial automation professionals, and BMS researchers working on CAN-based systems. It is primarily used for vehicle diagnostics, CAN network analysis, Battery Management Systems (BMS), PLC integrations, and machine communications.
What configuration tools are available with the CAN to Serial device?
The converter supports parameter configuration through a Windows-based GUI and can also use Docklight utility software to monitor CAN messages and frame communication.
